400Pcs/Min Double Lanes Carton Erecting Machine For Corrugated Board Paper

Name: 400PcsMin Double Lanes Carton Erecting Machine For Corrugated Board Paper
Brand: EcooGraphix
Price: 1 USD

Brand Name : EcooGraphix

Model Number : ECOO L1000/2-A, L1000/2-B, L1000/2-C

Certification : ISO9000, CE

Place of Origin : China

MOQ : 1 SET

Payment Terms : L/C, T/T

Supply Ability : 500 Sets/Year

Delivery Time : 45 Days

Packaging Details : Standard Export Packing

Price : Negotiable

Machine Type : Carton Erecting Machine

Voltage : 380V/50HZ

Maximum Production Speed : 400 pcs/min

Materials : Paper Board 200-600gsm; Corrugated board paper with thickness not exceed 1.5MM.

Blank Length (L) : 100mm-450mm

Blank Length (B) : 100mm-450mm

Covering Area : 4.0M*1.4M

Air Pressure : 0.6Mpa (Dry and clean compressed air)

Contact Now

400pcs/min Double Lanes Carton Erecting Machine

For Corrugated Board Paper

❈ ✲ ❉ Introduction ❉ ✲ ❈

ECOO lunch box forming machine is designed according to European industrial standard. Initially developed in China, the products developed in China, the products have achieved the CE certification and have been sold to many countries in the world. With high quality and efficiency, it is an ideal choice for you to produce single PE coated or double PE coated paper lunch box. Adopting mechanical device to control the forming structure.

❈ ✲ ❉ Specification ❉ ✲ ❈

Machine Models

L1000/2-A / 2-B/ 2-C

Blank Length (L)

100mm-450mm

Blank Length (B)

100mm-450mm

Height Of Side Flaps(H)

15mm-260mm

Height Of Side Flaps + Lid (HI)

50mm-260mm

Conicity

5°-40°

Voltage

380V/50HZ

Covering Area

4.0M*1.4M

The Total Power

8KW

Maximum Production Speed

400 pcs/min

Air Pressure

0.6Mpa(Dry and clean compressed air)

Materials

Paper Board 200-600gsm; Corrugated board paper with thickness not exceed 1.5MM.

The Differences Between L1000/2-A, L1000/2-B And L1000/2-C

L1000/2-A only can make the same box on the two lanes at the same time.

L1000/2-B can make the different box on the two lanes at the same time.

L1000/2-C adopts mechanic device to control the punching head.

Paper Box Sample

Free

Sample Time

1-3 days

Production Time

45 days

Machine Models	L1000/2-A / 2-B/ 2-C
Blank Length (L)	100mm-450mm
Blank Length (B)	100mm-450mm
Height Of Side Flaps(H)	15mm-260mm
Height Of Side Flaps + Lid (HI)	50mm-260mm
Conicity	5°-40°
Voltage	380V/50HZ
Covering Area	4.0M*1.4M
The Total Power	8KW
Maximum Production Speed	400 pcs/min
Air Pressure	0.6Mpa(Dry and clean compressed air)
Materials	Paper Board 200-600gsm; Corrugated board paper with thickness not exceed 1.5MM.
The Differences Between L1000/2-A, L1000/2-B And L1000/2-C	L1000/2-A only can make the same box on the two lanes at the same time. L1000/2-B can make the different box on the two lanes at the same time. L1000/2-C adopts mechanic device to control the punching head.
Paper Box Sample	Free
Sample Time	1-3 days
Production Time	45 days

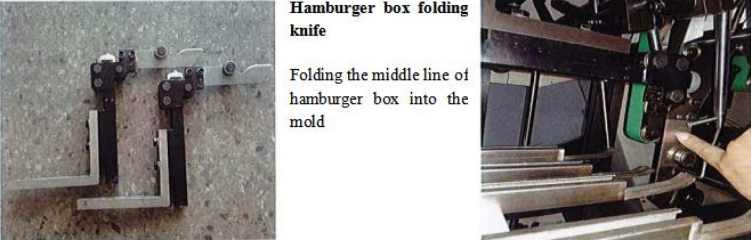

❈ ✲ ❉ Details ❉ ✲ ❈

• Strong and precisely machined walls make a strong and stable machine, with low noise running.

• Thick and strengthened plastics covers give a safe operation and visible monitor on running.

• Adjustable according to glue point.

400Pcs/Min Double Lanes Carton Erecting Machine For Corrugated Board Paper

• Electric box--- Germany Rexroth servo system to control the punching head exactly.

• English version touch screen

• Time of paper feeding is adjusted by cam. Simply operating, reducing failure rate.

• Automatic gluing systems controlled by reduce motor from Taiwan. Gluing point is made of sponge.

• Every part of forming and collecting system can be adjusted according to the size of mold. The whole collection system can be opened to change mold and install the forming parts conveniently.

• It adapts paper tape counting equipment to count product quickly and accurately, and to be readjusted.

❈ ✲ ❉ Producing And Packaging ❉ ✲ ❈

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

400Pcs/Min Double Lanes Carton Erecting Machine For Corrugated Board Paper

❈ ✲ ❉ Certificates ❉ ✲ ❈

400Pcs/Min Double Lanes Carton Erecting Machine For Corrugated Board Paper

❈ ✲ ❉ FAQ ❉ ✲ ❈

1. What's your advantage ? Why we choose you ?

A: We are a professional and leading carton erecting and forming machine manufacturer and supplier based in China for about 30 years.

We provide a wide array of paper processing machines, including Paper Erecting and Folding machine, Paper Box Forming machine, Ice cream paper cone machine, automatic paper punching machine and so on. Due to the high quality, stable performance and long service life, our products are sought after by customers in Canada, Spain, Chile, Venezuela, Greece, Honduras, Malaysia, the Philippines, Russia, etc.

2. Warranty of the machine ?

A: One year. During this period, any parts damaged caused by machine itself, we will repair/replace the spare parts for free. After one year, the spare parts will be supplied to buyers with charge. The machine service is all around the machine life.

3. What is the service ?

A: 7 days 24 hours on line service, engineer oversea service is also available if necessary.

4. What is the delivery terms ?

A: FOB China, CIF destination port under LCL and FCL is available.

5. What is the delivery time ?

A: 45 working days after the confirmation of the order.
